LX LT5 Hatch - Owned By : Matt


800X600 240kb

1024X768 380kb

Photos from Street Machine Magazine May '05

Info on the car

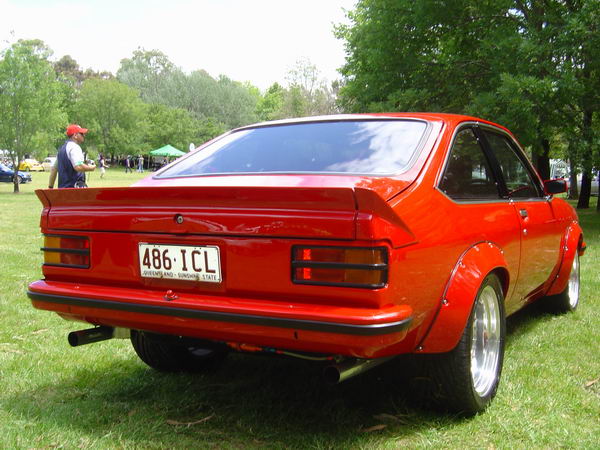

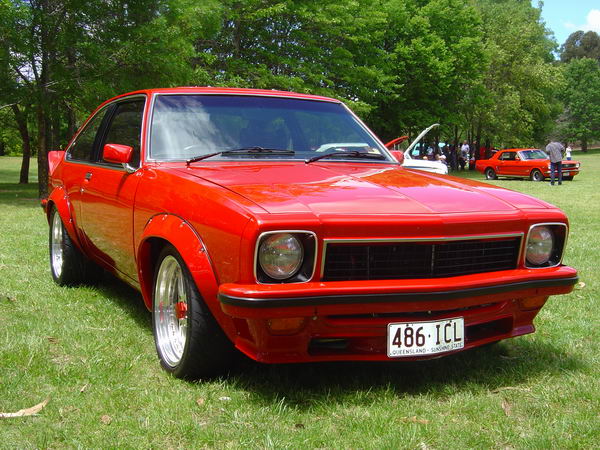

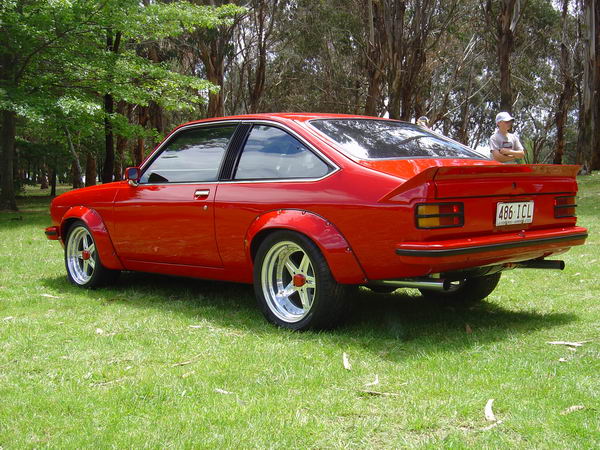

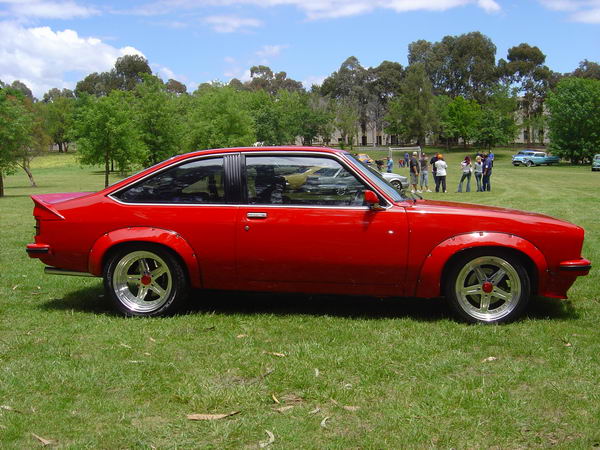

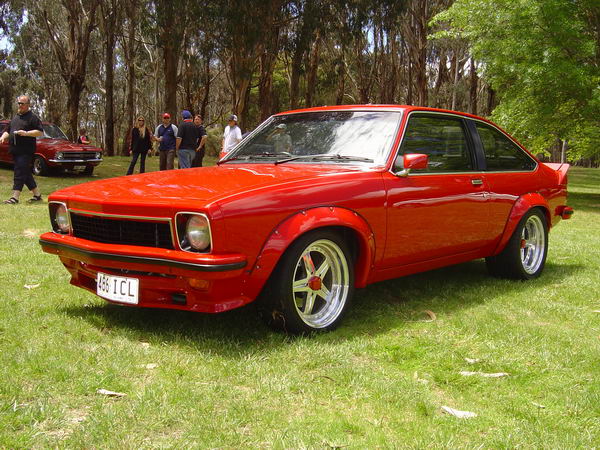

1976 LT5 Powered Torana Hatch

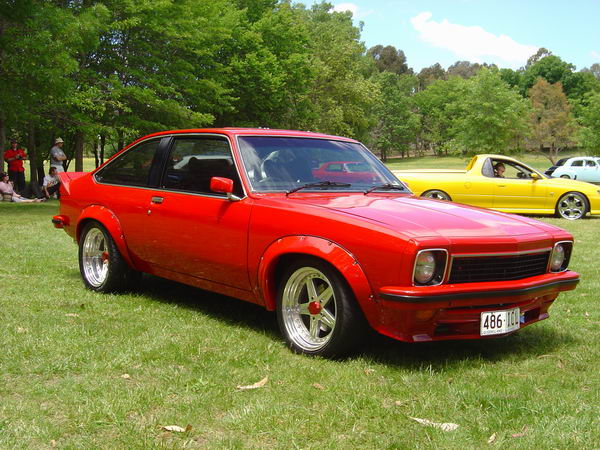

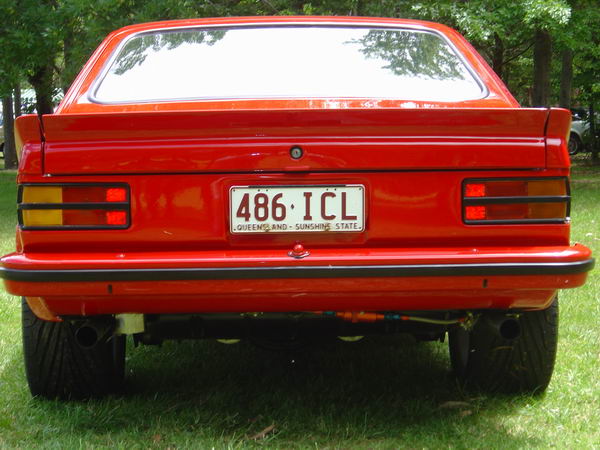

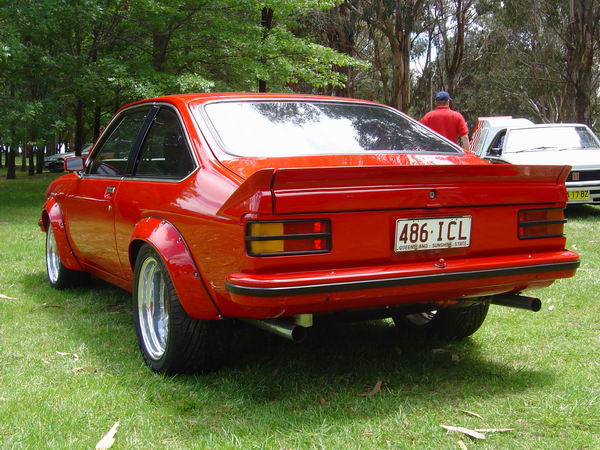

Body : 1976 LX Torana Hatchback with A9X flares and spoilers
Paint : Classic Red (from '89 Mazda)
Wheels : Forged Billet Dragway DB12 with anodised centres
Front 17x8 Rear 17x9.5
Tyres : Front 235/40-17 Dunlop Formula FM901
Rear 285/40-17 Goodyear Eagle F1 GS-D3

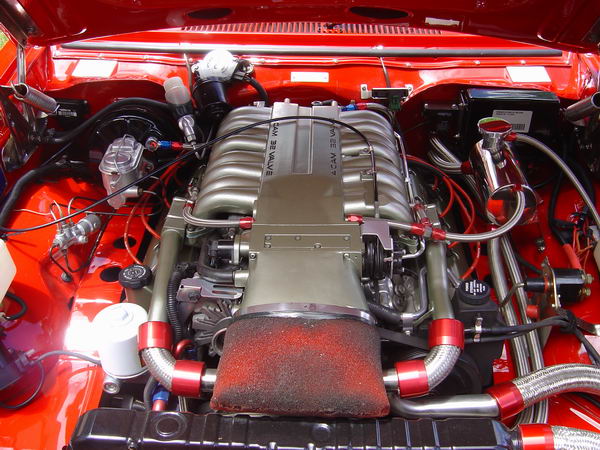

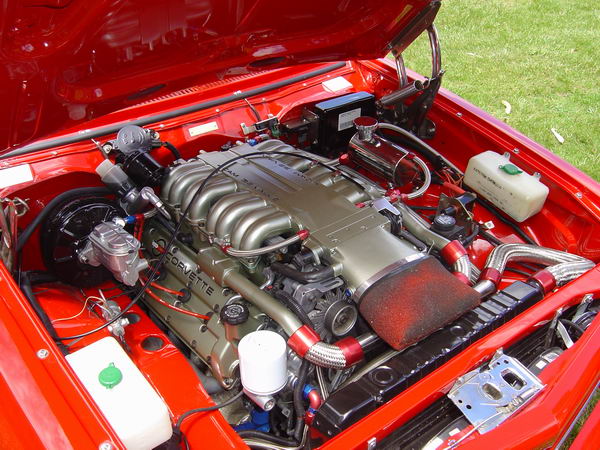

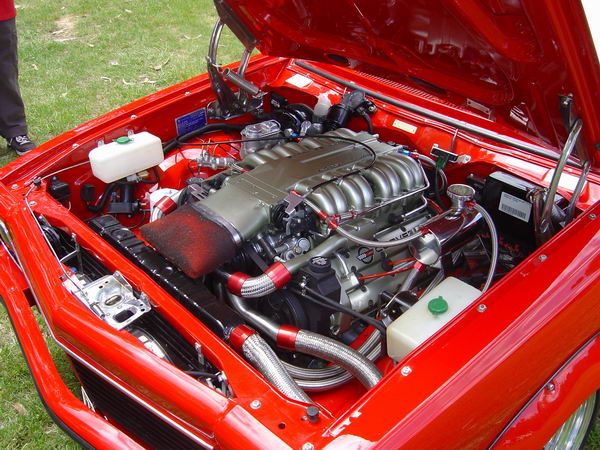

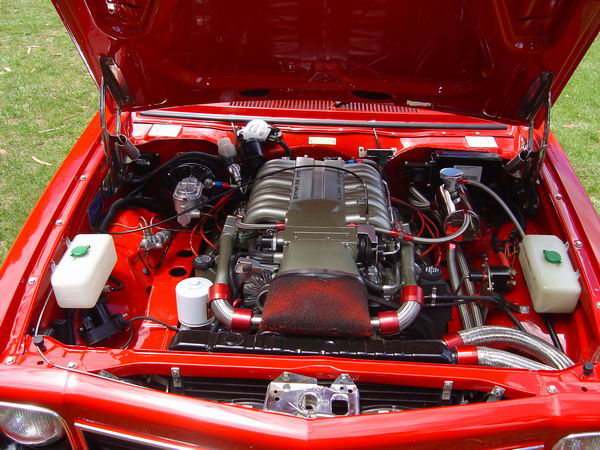

Engine : 1990 Chevrolet LT5 from ZR1 Corvette.
4 Cam 32 Valve aluminium 350ci V8
Staged Sequential Multipoint Electronic Fuel Injection
410 HP, 390 ft-lbs. Idle RPM 600-650 Max RPM 7200
Fuel consumption - 10L/100km (highway) 14L/100km (city)
These engines were designed and heads manufactured by Lotus
Engines were manufactured and assembled by Mercruiser
for Chevrolet and were only used in the ZR1 Corvette
from 1990 through 1995.
Transmission : '89 Turbo Supra R154 5 speed
Exhaust : Custom tuned length 4 into 1 headers with twin 3" mandrel bent
exhaust using S/S Edelbrock RPM mufflers, Group A Crossover and 2.5' tail pipes
Coated with HPC Ceramic Hypercoat
Clutch : ZR1 pressure plate, Custom 11" ceramic button clutch with hydraulic actuator
Diff : Ford 9" 4.11 Detroit Locker 28 spline
Brakes : HZ Statesman Discs Front and Rear
UC Torana double diaphragm booster
Suspension : Front '77 Torana RTS front end with Lovell springs
Whiteline front mount HD swaybar
Rear 1" lowered Lovell springs with Boxed trailing arms
Whiteline HD swaybar
Polyurethane bushes front and rear
UC Torana Steering Rack
Koni Adjustable gas Shocks

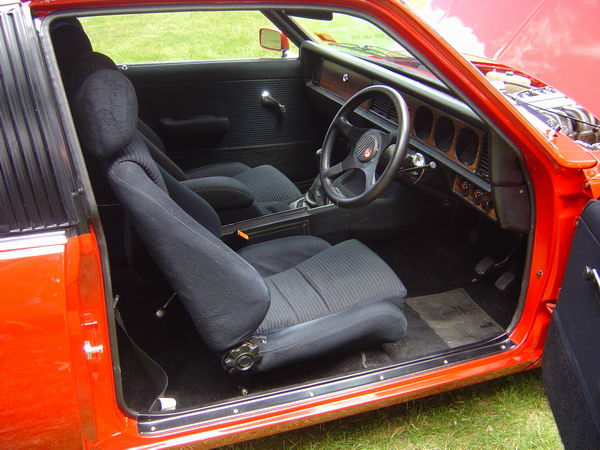

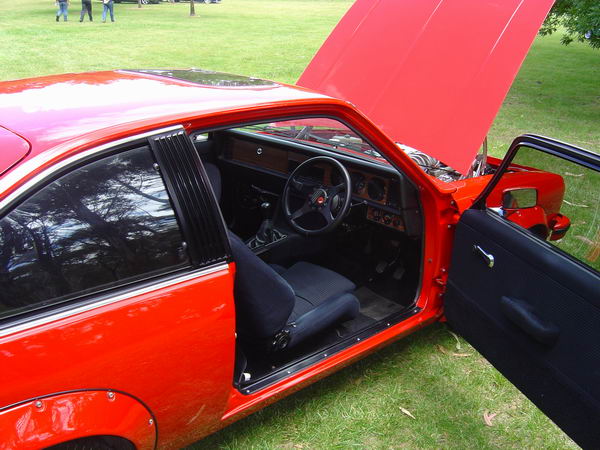

Interior : SAAS reclinable seats
Custom Interior trimmed in matching black velour
Custom VDO gauges - 8000Rpm Tacho, 300km/h Speedo, Oil pressure, Oil Temp, Water Temp Gauges
'89 Skyline Heater/Aircon System
